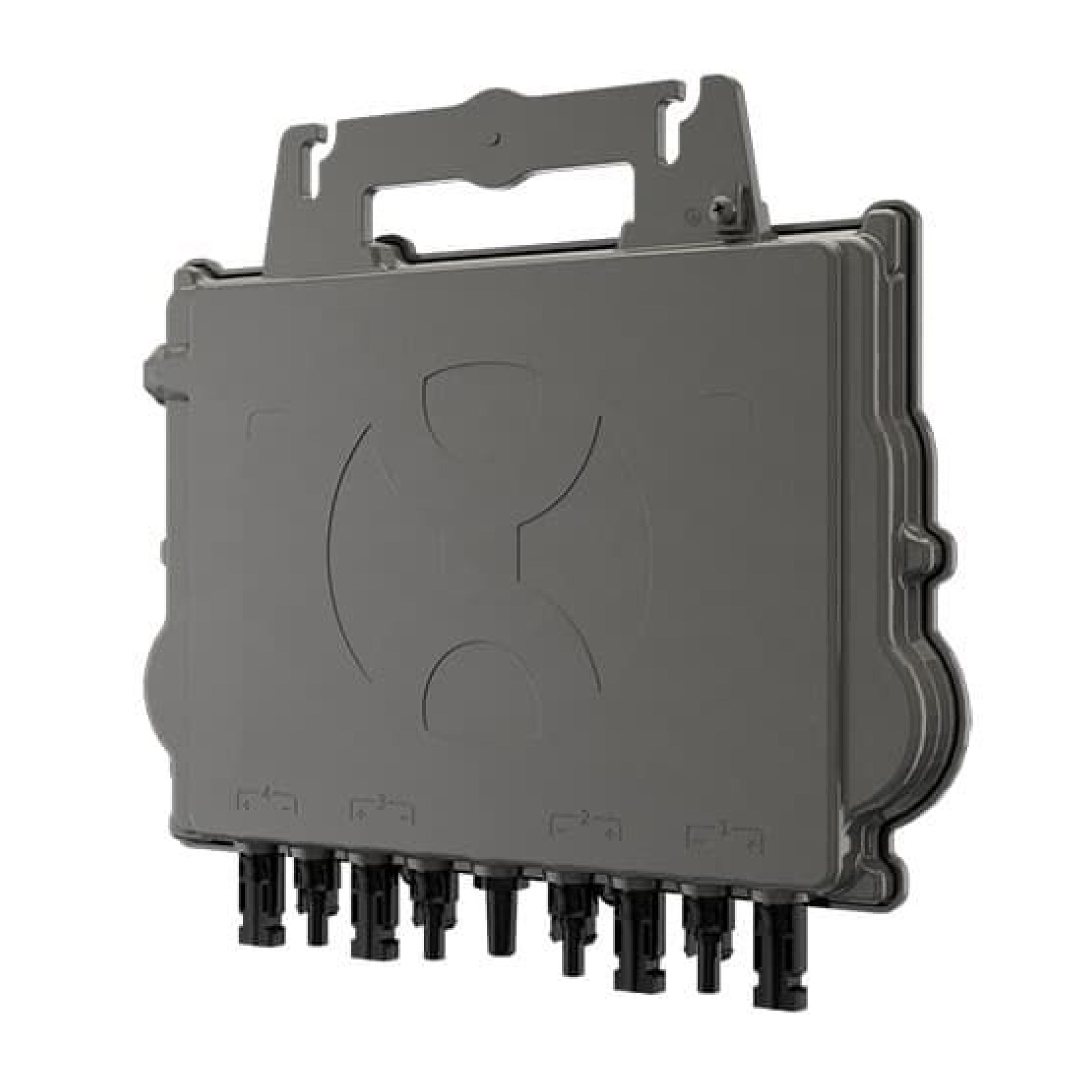

APSystems, QT2 - 480, 3-Phase Quad Microinverter

QT2

• Designed for 3-phase grid connection (208V or 480V)
• Single unit connects to 4 modules, 2 MPPTs, module-level DC voltage
• Maximum continuous AC output power 1728VA @ 208V, 1800VA @ 480V
• Engineered to harness today's high-capacity PV modules (Maximum input current 20A)
• Integrated safety protection relay
• Adjustable power factor
• Balancing 3-phase output
• Compatible with both ^ and Y 3-phase grid

Product Features
APsystems introduces its 2nd generation of native 3-phase quad microinverters, reaching unprecedented power outputs of 1728VA (for 208V) and 1800VA (for 480V) to harness the power of today's high-output PV modules. The QT2 microinverter gives commercial installers a powerful plug-and-play MLPE inverter that installs faster than competing solutions and is inherently compliant to rapid shutdown requi- rements

With balancing 3-phase output, 4 DC inputs and encrypted ZigBee wireless, installers and system owners alike benefit from new QT2 archi- tecture platform. The innovative design facilitates thermal dissipation while maximizing power production. The components are encapsulated with silicone to reduce stress on the electronics, dissipate heat, enhance waterproof properties, and ensure maximum reliability of the system. 24/7 access to performance data through apps or APsystems EMA web-based portal facilitate remote diagnosis and trouble

The new QT2 is grid interactive through its Reactive Power Control (RPC) feature, designed to better manage photovoltaic power spikes in the grid. At 96.5% peak efficiency and improved reliability, the QT2 is a game changer for commercial Solar.
