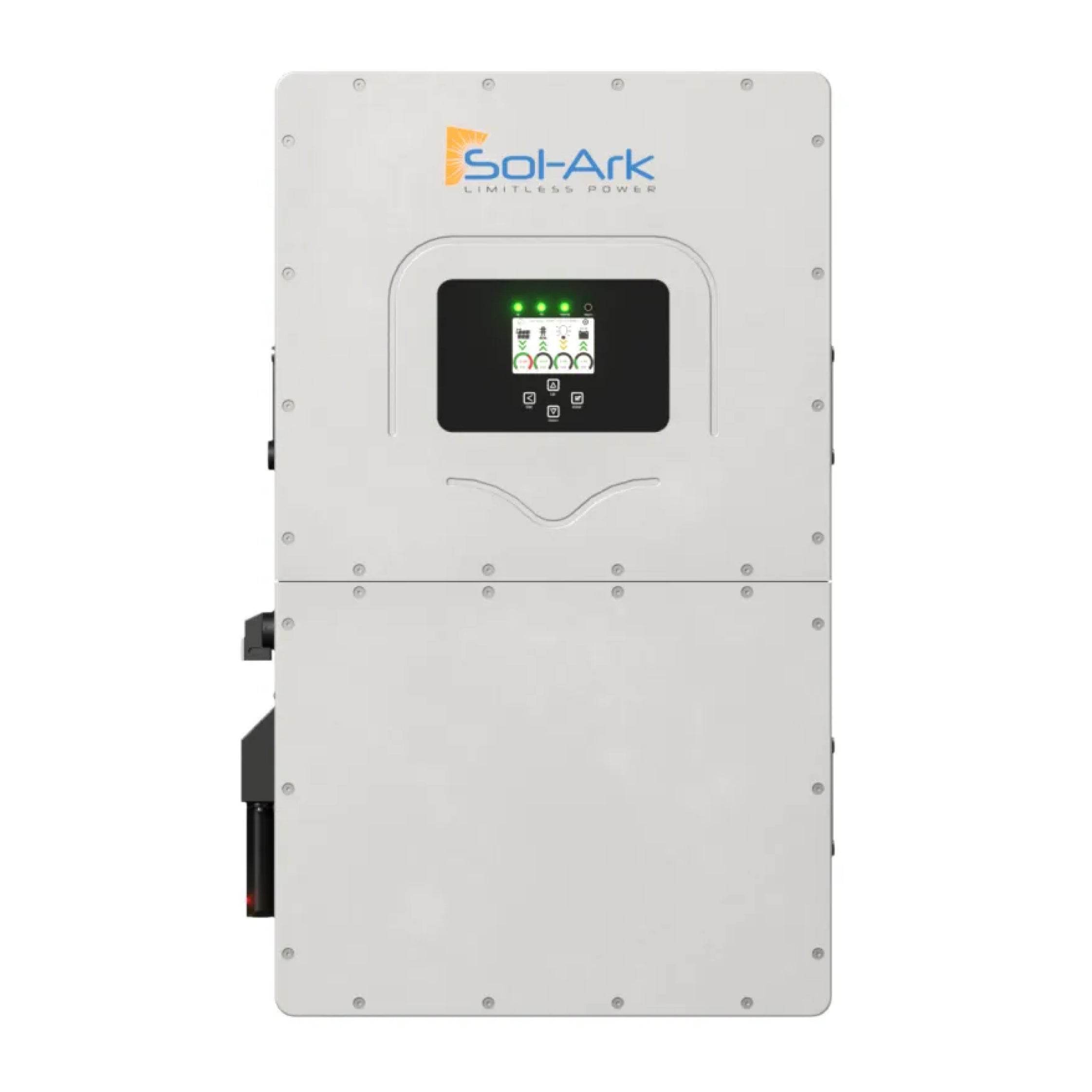

Sol-Ark 60K-3P-480V Hybrid Inverter System

Sol-Ark 60K Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.

Especially designed for Commercial/Industrial Customers.

Input Data (PV)

Max. Allowed PV Power (STC): 78,000W
Nominal Voltage Range: 150-850V
Startup Voltage: 150V
Max. Input Voltage1: 1,000V
Max. Input Current per MPPT: 36A
Max. short circuit current per MPPT: 55A
No. of MPP Trackers: 4
No. of PV Strings per MPPT: 2
Max. AC Coupled Input: 120,000W

Output Data (AC)

Nominal AC Voltage (3Φ): 277/480V
Grid Frequency: 50 / 60Hz
Real Power, max continuous (3Φ): 60,000W
Max. Output Current: 72.3A
Peak Apparent Power (7s, off-grid, 3Φ): 120,000VA @ 144A
Max. Grid Passthrough Current: 200A
Power Factor Output Range: +/- 0.8 adjustable
Backup Transfer Time: 5ms (adjustable)
CEC Efficiency: 96.5%
Max Efficiency: 97.5%
Design (DC to AC): Transformerless DC
Stackable: Up to 12 in parallel

Battery Input Data (DC)

Battery Chemistry: Lithium iron phosphate
No. of Battery Inputs: 2
Battery Input Terminal Rating: 50A
Nominal DC Voltage: > 600V
Operating Voltage Range: 160 – 800V
Battery Capacity Range: 50 — 9900Ah
Max. Battery Charge / Discharge Current: 100A (50A per input)
Charge Controller Type: 3-Stage with Equalization
Grid to Battery Charging Efficiency: 96.0%
Automatic Generator Start (AGS): 2 Wire Start – Integrated
BMS Communication2: CANBus & RS485

General Data

Dimensions (H x W x D): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
Weight: 79.4 kg (172 lb)
Enclosure: IP65 / NEMA 3R
Ambient Temperature: -40~60°C, > 45°C Derating
Noise: < 30 dB @ 25°C (77°F)
Idle Consumption – No Load: 60W
Communication and Monitoring: Wi-Fi & LAN Hardware Included
Warranty: 10 Years

Additional Information

Certifications and Listings (Grid Support Interactive Inverter): UL 1741-2021 (incl UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0),  L1699B, CEC3, SGIP3
PV DC Disconnect Switch — NEC 240.15: Integrated
Ground Fault Detection — NEC 690.5: Integrated
PV Rapid Shutdown Control — NEC 690.12: Integrated
PV Arc Fault Detection — NEC 690.11: Integrated
PV Input Lightning Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Surge Protection: DC Type II / AC Type III
