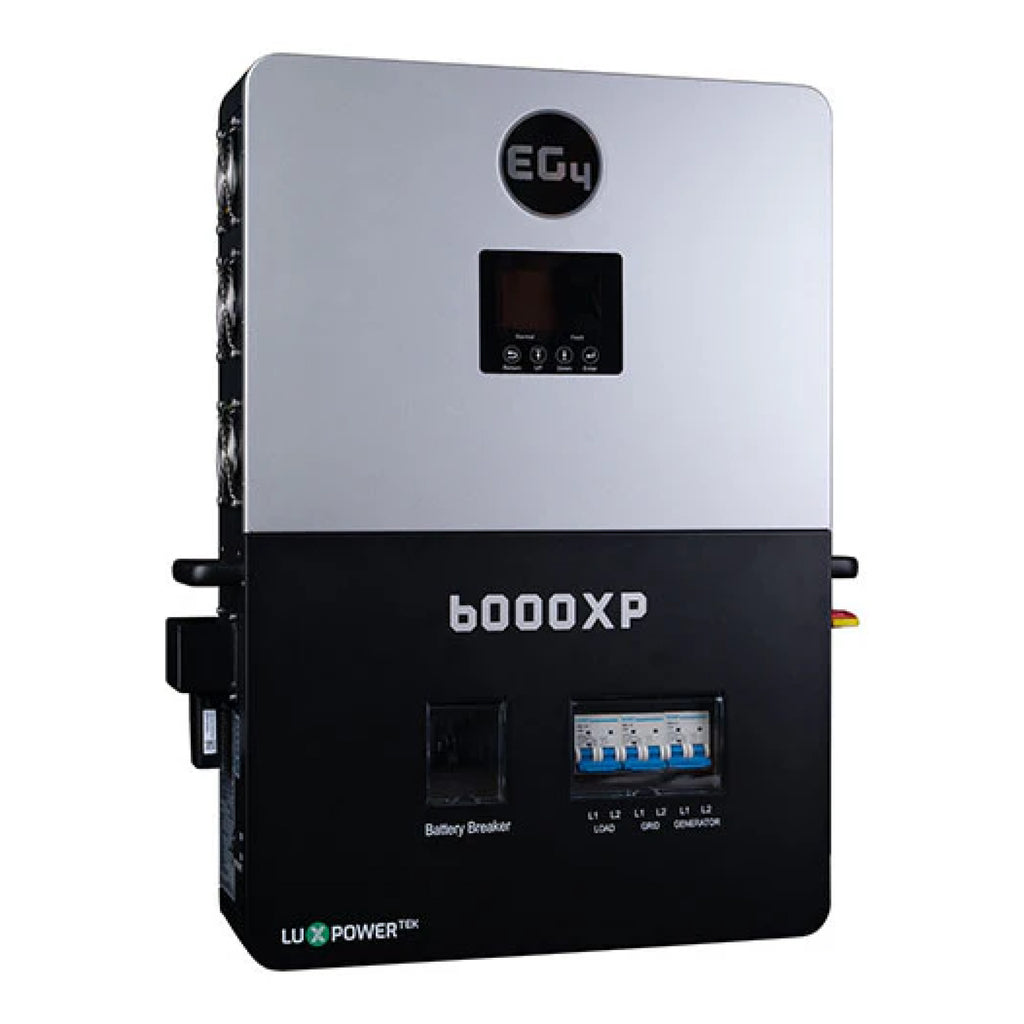

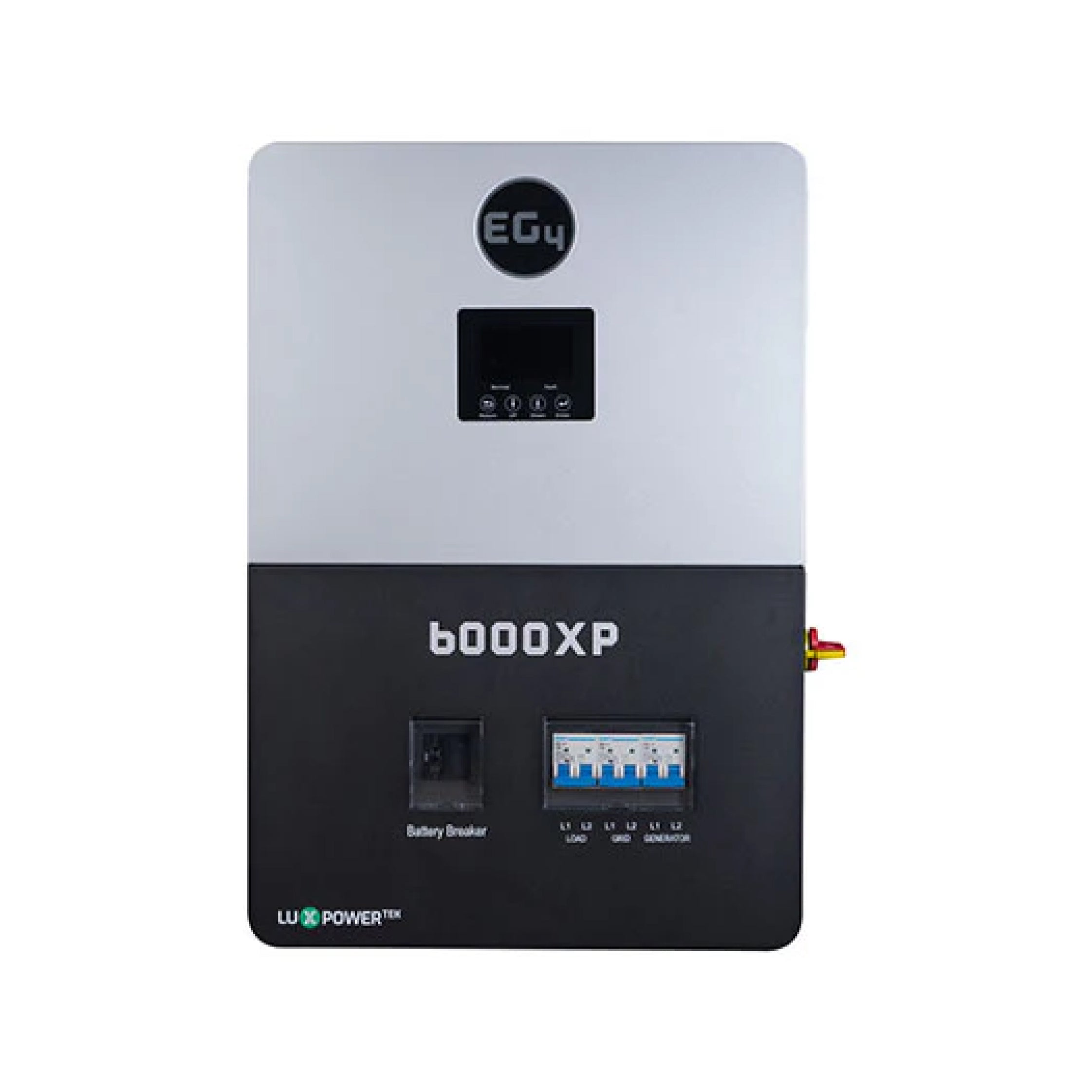

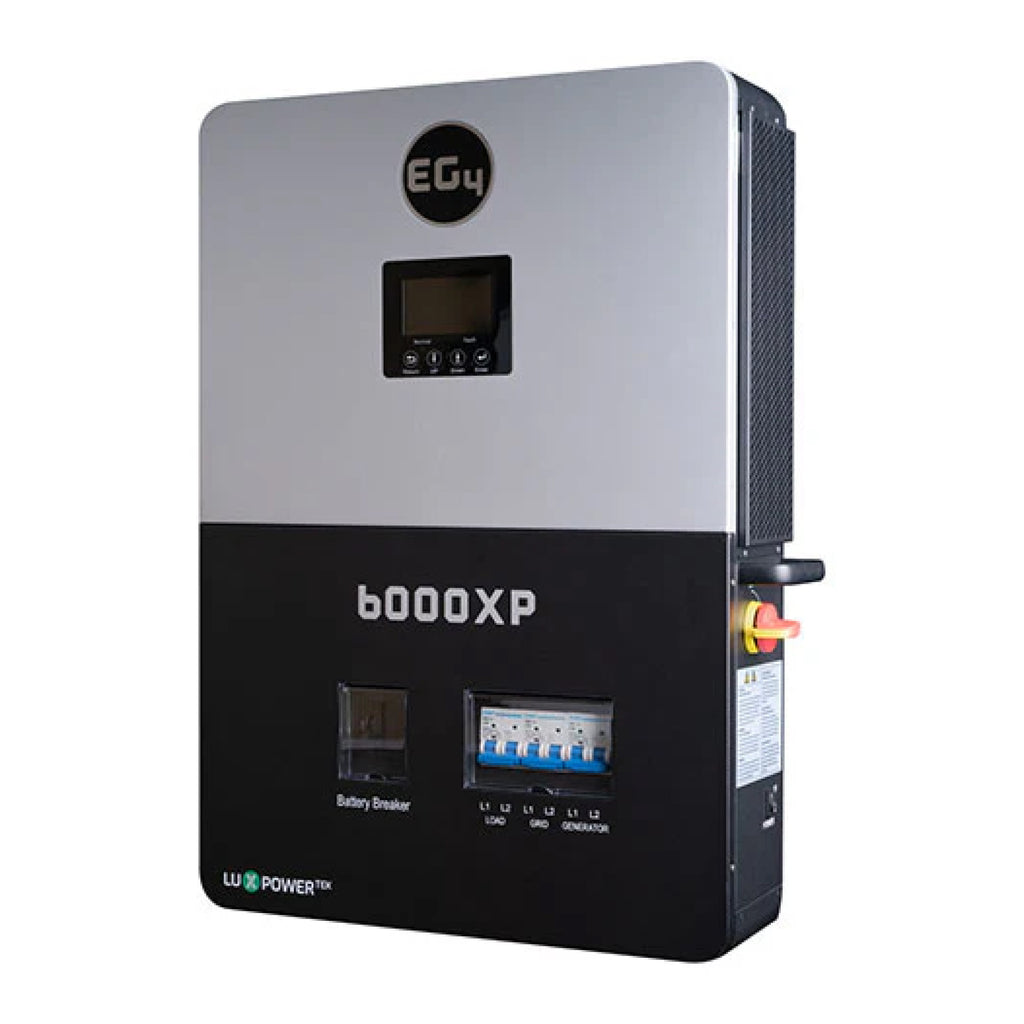

EG4 6000XP Off-Grid Inverter | 8000W PV Input | 6000W Output | 480V VOC Input | 48V 120/240V Split Phase

The EG4 6000XP All-In-One Off-Grid Inverter is a 48V split-phase inverter/charger that delivers powerful and efficient off-grid energy solutions. With an 8kW PV input and 6kW output, it can charge your battery bank while powering your devices. Highly scalable, it supports up to 16 units in parallel, providing a total output of 96kW, making it suitable for both residential and commercial applications.

This transformerless, high-frequency inverter offers split-phase 120/240V output and can operate off-grid or with grid input for supplemental charging. Its dual MPPTs support 8kW of solar input with a high 480VDC, reducing cable size and simplifying setup. Wi-Fi connectivity and EG4’s monitoring software allow for real-time remote management, while closed-loop communication ensures seamless integration with EG4 48V batteries. Backed by a 5-year warranty, the 6000XP provides reliable off-grid power.

EG4 6000XP Off-Grid Inverter Specs

• Rated Output Power: 6000W
• Max PV Input: 10,000W
• Max Charging Current: 125A
• Number of MPPTs: 2
• Parallel: Up to 16 units for a max of 96kWs of continuous AC power
• DC Input Voltage Range: 100-480 VDC
• Dimensions: 18×25.5×5.25 in
• Weight: 52.9 lbs

EG4 6000XP Off-Grid Inverter Features

• 6000W rated output power
• Parallel up to 16 units for 96kWs of output power

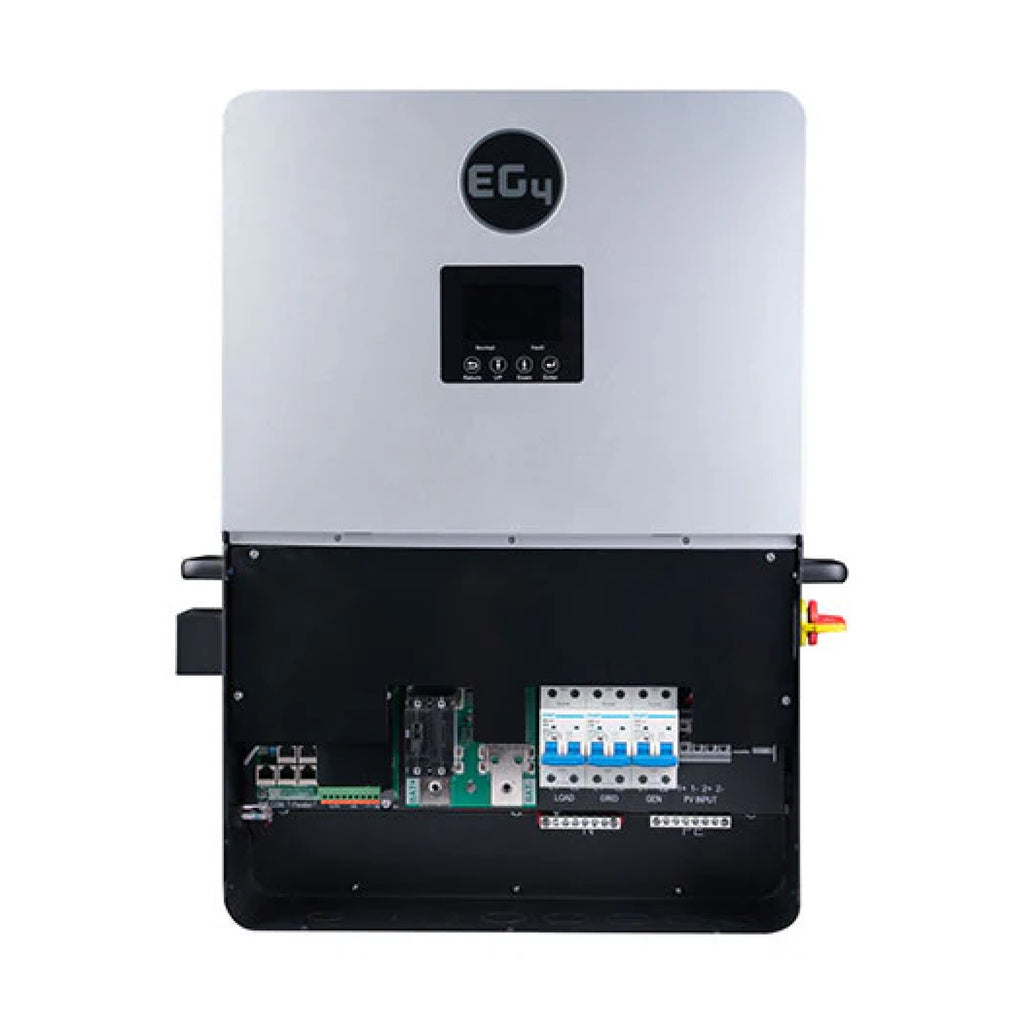

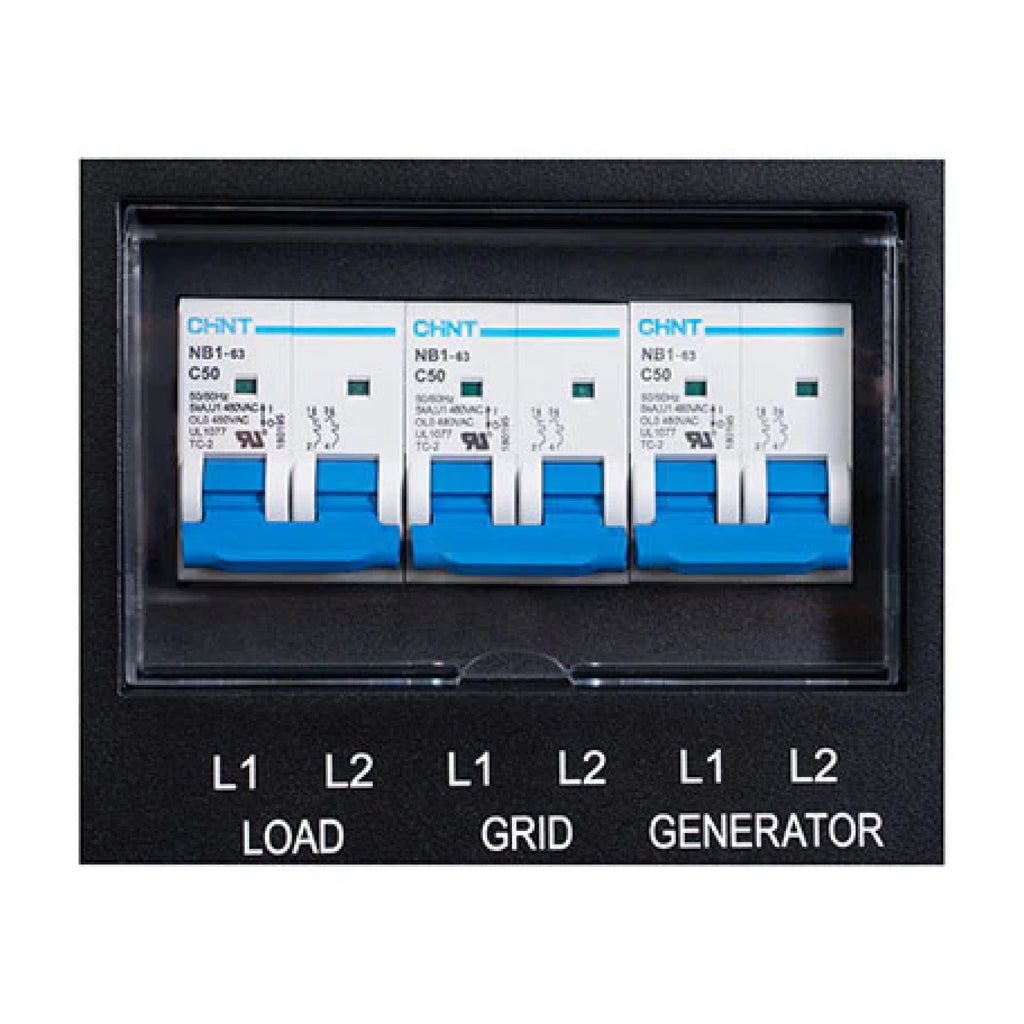

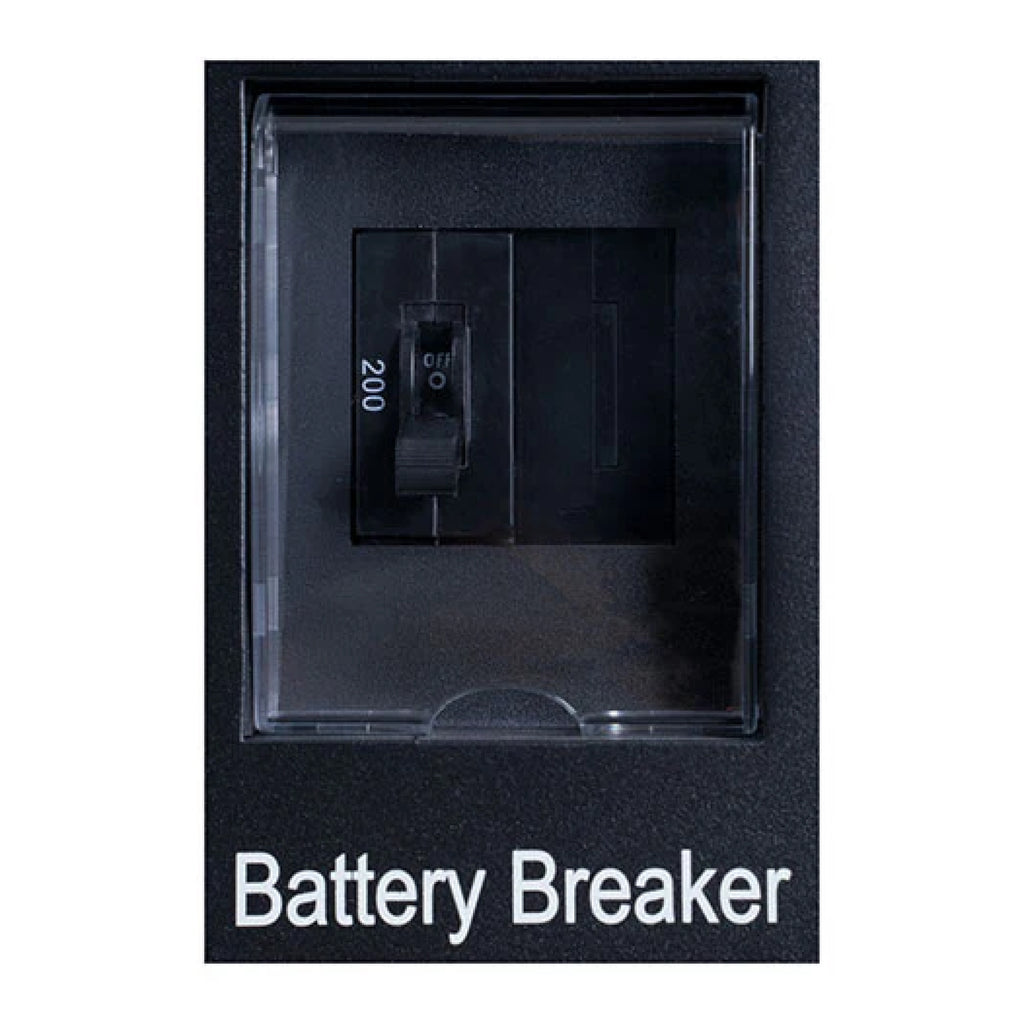

• Built-in Switchgear for reduced installation costs and enhanced safety
• Transformer-Free Design
• Dedicated Generator Connection
• Inverter, AC Charger, and Solar Charge Controller
• Manages power from energy storage systems, and grid simultaneously
• 120/240V split phase
• MPPT Efficiency 99%
• Battery Charging Efficiency 93%
• Battery Discharging Efficiency 93%
• EG4 Monitoring App- Google Play & App Store
