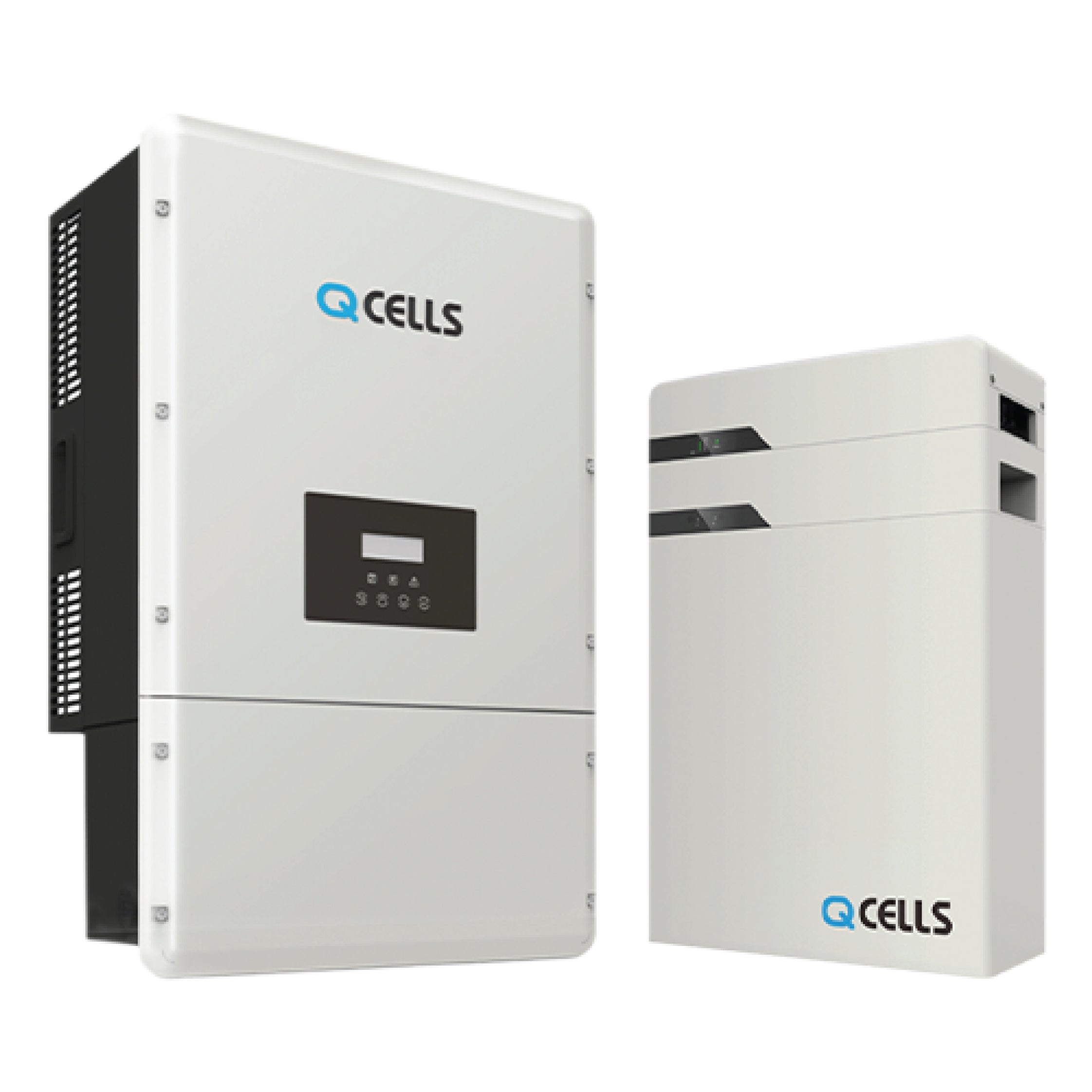

Hanwha Q CELLS Q.HOME+ ESSHYB-G1-6.3 6.3kW 120/240VAC 600VDC Split-Phase Hybrid Modular Battery Inverter

Hanwha Q CELLS Q.HOME+ ESSHYB-G1-6.3 6.3kW 120/240VAC 600VDC Split-Phase Hybrid Modular Battery Inverter

Manufacturer Part#: ESSHYB-G1-6.3

The Q.HOME+ ESS HYB-G1 energy storage solution has a modular design for quick and simple installation and offers scalable storage capacity ranging from 4.5 kWh to 18.9 kWh. The system can link up to three batteries in series using just one inverter and battery management system (BMS), and it is available in both DC-coupled and AC-coupled configurations. The system allows remote monitoring using the Q.HOME + online site or Q.HOME + ESS mobile app and has an integrated backup power function for 100% of the rated inverter output to sustain important loads in the event of a power breakdown.

• Smart Design - Modular design for easy and fast installation, remote control operated hybrid system with PV inverter, lithium-ion battery, and battery charger
• Remote Monitoring - Easy maintenance due to its early error detection function, web and mobile monitoring, and a reliable service network
• Safety & Reliability - Premium quality lithium-ion
• Durability - High durability with 10 year product warranty and 90% depth of discharge (DoD)
